Brief introduction:：

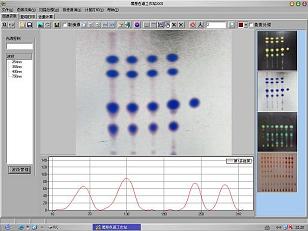

It is a new product of the portable design to satisfy the TLC analysis. Its handling speed is rapid , resolution ratio is high, and ithas good linear property with little noise. The Instrument is constituted by three parts, light source, opticssystem and TLC work station. The TLC work station is one of the best TLC software It can fullautomatic control as well as quantitative handle for spots of TLC .The quantitative precision is close to the import product and satisfy the needs of pharmaceutical factory and college daily analysis, YOKO-2000 Video Scanner is the good assistant of your laboratory.

Technical parameter:
1. Scanning way: the linear, the multi-channel scans
2. Light source: the 254/365nm UV light, 400-750 obvious light
3. Resolution ratio: may reach 10um
4. Reappearance:≥99%
5. Detection mode: reflection method, fluorescence method
6. Algorithm: the unitary method, the internal standard method, the external standard method (a straight line method, two dotted curve method), meet the requirements of pharmacopoeia
7. Software environment: WIN XP/2000/NT

Instrument characteristic

1. There is with single-wavelength scanning, dual-wavelength scanning, multi-channel scanning.
2. On the TLC spots quantitatively accurate, precise measurement of Rf values,
3. For the image can be rotated any angle, can be of color brightness, saturation, contrast correction.
4. Can print out the peak, Rf value, peak area, content, images, reports meet the requirements of the analysis.
5. Humanized Chinese software operation interface, an unlimited data bank administration,
6. Machine is equipped with illustrated educational software, concise and convenient at any time to see.
